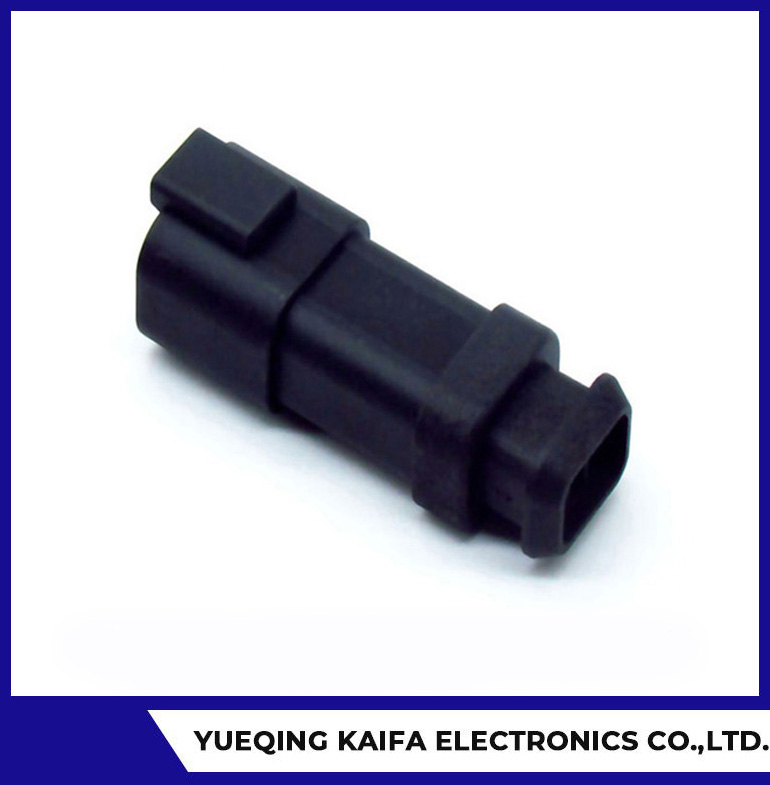

Female DT Sealed Cable Connector Housing

Female DT Sealed Cable Connector Housing

Kaifa electronics is a 15 years professional manufactures of Female DT Sealed Cable Connector Housing. There may be a lot of Female DT Sealed Cable Connector Housing manufacturers out there, but not all Female DT Sealed Cable Connector Housing manufacturers are alike. We constantly invest in the latest technologies and equipment to produce Female DT Sealed Cable Connector Housing that meet our requirement for consistency and precision on an ever-improving scale. Our professional expertise in manufacturing Female DT Sealed Cable Connector Housing has been honed over the past 15+ years.

Model:KF04-4P-CE09 (11)

Send Inquiry

Product Description

Description of this Female DT Sealed Cable Connector Housing


The following is about Female DT Sealed Cable Connector Housing, I hope to help you better understand Female DT Sealed Cable Connector Housing.


Features of this Female DT Sealed Cable Connector Housing
· Connector type : Housing for Female Terminals
· Connector System  : wire to wire
· Sealable : yes
· Hybrid Connector : No
· Circuit Application : Power & Signal
· Primary Locking Feature  : Integrated in Housing
· Connector & Contact Terminates To : Wire & Cable
· Electrical characteristics
· Operating Voltage (VAC): 250
·Operating Voltage (VDC): 250
·Nominal Voltage Architecture (V): 12, 24, 48


Use environment of this Female DT Sealed Cable Connector Housing
·Operating Temperature (Max) : 125 °C [ 257 °F ]
· Working temperature range : -55 – 125 °C [ -67 – 257 °F ]
· Protection level : IP68
· UL Flammability Rating : 20mm Flame Test per Standard UL-94


Body Material of this Female DT Sealed Cable Connector Housing
 · Body Material : PA GF
 · Cable Exit Angle : 180°
 · Primary Product Color : Gray
 · Contact Features
 · Mating Pin Diameter : 1.6 mm [ .063 in ]
 · Contact Current Rating (Max) (A): 13
 · Mechanical Attachment
 · Mating Alignment Type : With
 · Strain Relief : Add By Accessory
 · Terminal Position Assurance : Yes
 · Mounting Feature : Without
 · Housing Features
 · Centerline (Pitch) : 5.46 mm [ .215 in ]
 · Dimensions
 · Accepts Wire Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]
 · Product Height : 15.77 mm [ .621 in ]
 · Product Length : 28.4 mm [ 1.118 in ]
 · Product Width : 15.01 mm [ .591 in ]
 · Usage Conditions
· Housing:PBT+G,PA66+GF;
· Terminal:Copper Alloy,Brass,Phosphor Bronze.
· Degree of Protection : IP68, IP6K9K
· Agency/Standard : SAE J2030
· Packaging Features
· Packaging Method : Box
· Packaging Quantity : 180
· Other
· Connector Position Assurance Capable : No
· Serviceable : Yes

The above is the Female DT Sealed Cable Connector Housing. If you want to know more about Wire Harness, Automotive Connector, etc., you can contact us.



Parameter of this Female DT Sealed Cable Connector Housing

The following is about Female DT Sealed Cable Connector Housing, I hope to help you better understand Female DT Sealed Cable Connector Housing.

If you want to know more Female DT Sealed Cable Connector Housing, or other related Non-Waterproof Connector,Brand series…. and other products,you can contact us.
